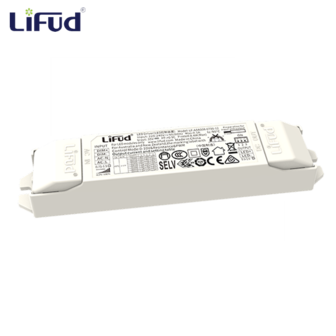

Lifud driver | Constant Current | Compact Dimmable | Dip Switch | 8W | 220-240V | 2-12V
In de bijlage vindt u uitgebreide informatie over deze driver van Lifud.
LED Flatlight: If you compare our LED Products to traditional lighting you will see that our lighting radiates less heat and has a much longer life span and a very low maintenance cost. Our products are made of quality parts and have a high energy saving level. We think quality is very important so we always make sure our products are tested and have the right certificates.
| Type |
Comp Dim. Dip Switch IP20 |
| Model |
LF-AAA008 350-700mA |
| Max Output |
8W |
| Dim. Functions |
0-10V+PWM+Rx |
| Input Voltage |
220-240V |
| Output Voltage |
2-12V |
| Output Current |
350-700mA (Dip switch) |
| Efficiency (Typical) |
76%(230Vac) |
| PF (Typical) |
0.90(230Vac) |
| Working Temp. |
-30℃~+45℃ |
| Dimensions |
141*30*21 mm |
| Certificates |
ENEC, CE, CB, RCM, CCC, RoHS |
| Warranty |
5 Years |
| |
|
| |
|
| |
|
| |
|
| |
|
